A homeowner in Watford rang three drainage firms in March last year after a CCTV survey showed a collapsed clay pipe running under her patio. Quote one: £950. Quote two: £2,400. Quote three: £3,800. Same pipe, same fifteen-year-old house, same eight-metre run. She went with the middle quote and still ended up paying an extra £400 once the patio slabs turned out to be bedded in concrete rather than sand.
That spread isn’t unusual. It’s the norm. Drain excavation cost figures swing wildly across the UK because the pipe itself is rarely the expensive part – it’s everything around it. Access, spoil removal, and putting your driveway or patio back the way it was can easily double the bill nobody warned you about.
Contents
- What Affects the Price
- Average Drain Excavation Cost in 2026
- Cost Table by Job Type
- DIY vs Professional Drain Excavation
- How to Get a Fair Quote
- What Does Reinstatement Actually Cost?
- Before You Book: A Quick Checklist
What Affects the Price
Six things move the number, and only one of them is the pipe.
Depth. A drain sitting 60cm down is a different job to one at 1.8 metres. Past a metre, most firms need shoring or trench boxes by law, under the Health and Safety Executive’s excavation guidance. That’s extra kit, extra time, extra cost.
Access. A trench in an open back garden with a gate wide enough for a mini digger is cheap to run. A drain under a hallway floor, or one only reachable by hand-digging through a narrow side return, can add £500-£1,500 in labour alone.
What’s on top. Grass costs nothing to lift. A block-paved driveway, a patio, or a section of tarmac drive is a different conversation entirely – see the reinstatement section below.
Muck-away. Every cubic metre of spoil that comes out of the ground has to go somewhere. Skip hire or licensed muck-away removal in London routinely runs £150-£300 per load, and a single 8-metre trench can fill more than one load.
Pipe material and diameter. Standard 100mm/110mm PVC is cheap. Larger diameter clay or a section that ties into a shared sewer needs sign-off and sometimes a Section 104 or Section 50 licence, adding time and admin cost.
Who’s near the pipe. If the drain runs under a boundary, a driveway shared with a neighbour, or close to a tree with a preservation order, expect delays and possibly a party wall or highways conversation before anyone touches a spade.
Average Drain Excavation Cost in 2026
Strip out the extremes and most UK homeowners are paying somewhere between £800 and £4,500 for a domestic drain excavation and replacement in 2026, according to figures broadly in line with Checkatrade’s cost guides and MyJobQuote’s pricing data.
A short, shallow run in an accessible garden sits at the bottom of that range. A deep excavation under a driveway with muck-away and full reinstatement sits near the top, and commercial jobs – shopfronts, restaurants with grease-heavy drainage, blocks of flats – can run past £6,000 once you factor in out-of-hours working and shared-drain complications.
Here’s the honest version nobody puts on a homepage: the pipe and the labour to lay it might be £600-£900 of that bill. The rest is access, spoil, and putting the surface back. If a quote doesn’t itemise those, ask why.
Cost Table by Job Type
This table breaks the drain excavation cost down by job type, based on typical 2026 UK domestic pricing. Use it as a sanity check against any quote you receive.
| Job Type | Typical Cost 2026 | What’s Included |
|---|---|---|
| Shallow trench, garden access, up to 5m | £800 – £1,400 | Digging, pipe, backfill, basic reinstatement (grass/soil) |
| Standard drain replacement, 5-10m, driveway access | £1,500 – £2,800 | Excavation, new pipe, bedding, muck-away, partial reinstatement |
| Deep excavation (over 1.2m), shoring required | £2,500 – £4,000 | Trench box hire, extended labour, muck-away, full backfill |
| Under-patio or under-driveway dig with full reinstatement | £3,000 – £5,500 | Slab/block removal, excavation, pipe, muck-away, like-for-like relay |
| Shared sewer or highways-adjacent excavation | £3,500 – £7,000+ | Section 50/104 licensing, traffic management, excavation, reinstatement |
| Interceptor chamber replacement | £1,200 – £2,600 | Chamber removal, new interceptor unit, connections, backfill |
Note that none of these figures include VAT, and most firms will price a genuine like-for-like drain replacement price separately from any relining alternative – which is often 30-40% cheaper if the pipe run allows it.
DIY vs Professional Drain Excavation
You can hire a mini digger for £150 a day. You cannot, legally or sensibly, dig up a drain connected to the public sewer network without knowing exactly where that connection sits and what’s above it.
Water UK, the industry body representing UK water companies, is clear that any work near a public sewer needs the water company’s involvement, and unauthorised excavation near shared infrastructure can leave you liable for damage – see Water UK’s guidance for the full picture.
There’s also the practical risk. Gas, electricity, and water supply lines don’t announce themselves. A DIY dig that clips a gas main isn’t a saving, it’s an emergency call-out and a hole in your finances far bigger than the £2,000 you were trying to avoid.
Where DIY genuinely helps: clearing the area beforehand, removing fence panels or garden furniture, and having your own CCTV survey done first so the engineer isn’t pricing blind. A CCTV drain survey typically costs £100-£250 and can shave hundreds off a quote because it removes the guesswork.
How to Get a Fair Quote for Drain Excavation Cost
Ask for three things on every quote, every time.
1. A line-item breakdown. Excavation, pipe and materials, muck-away, and reinstatement should all sit on separate lines. If a firm gives you one lump figure, push back.
2. Confirmation of what “reinstatement” means. Does it mean the same block paving relaid to match, or a bag of ready-mix concrete slapped over the trench? These are wildly different jobs at wildly different prices.
3. What happens if the job changes underground. Ground conditions are the single biggest reason quotes balloon mid-job. A fair engineer will tell you upfront what a “worst case” scenario looks like in cost terms, not spring it on you at day two.
If you want a straight, itemised quote rather than a guess, get in touch through our contact page and we’ll walk you through the real cost before anyone picks up a spade.

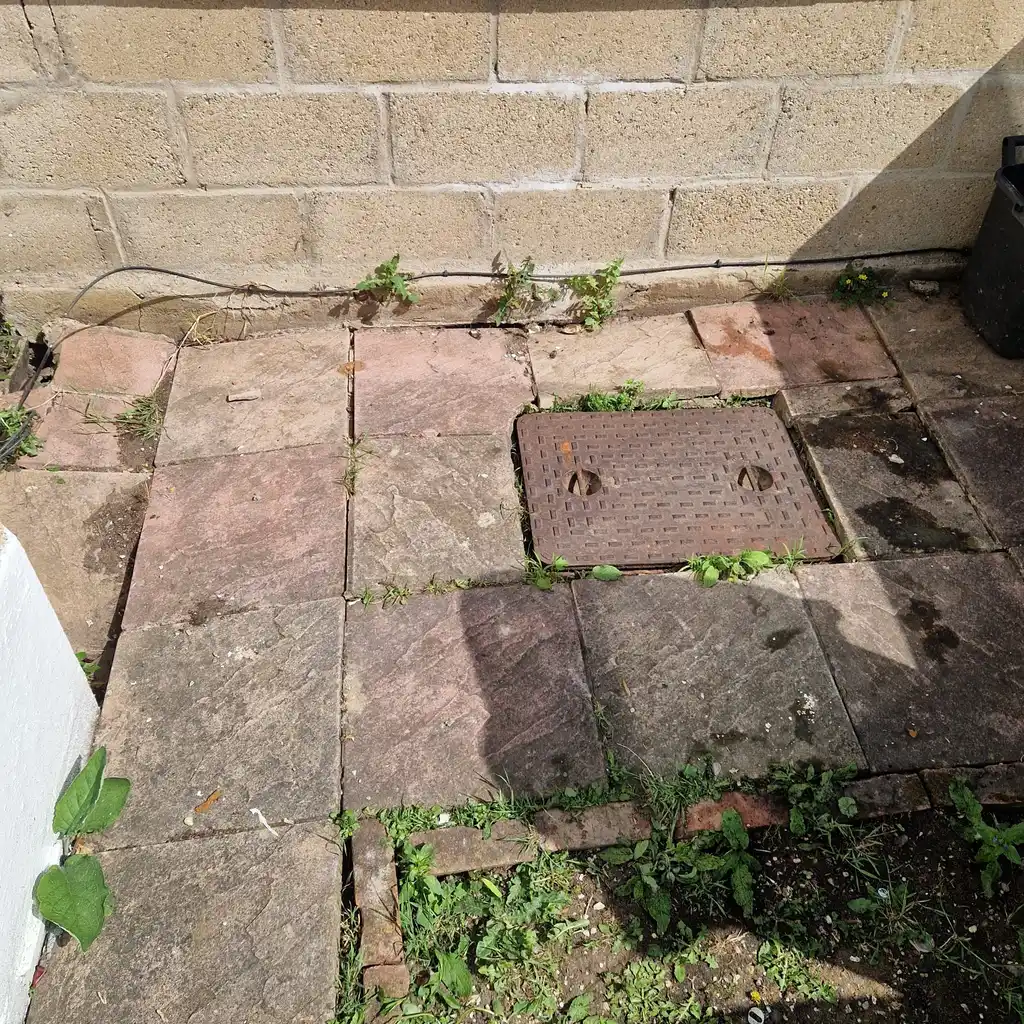

What Does Reinstatement Cost Drains Actually Involve?
This is the line item that catches people out, and it’s the reason two “identical” quotes can be £1,000 apart.
Grass and soil: cheap, often £100-£200, sometimes rolled into the base price.
Block paving or patio slabs: £400-£1,200 depending on area, pattern complexity, and whether matching materials are still available. Reclaimed clay pavers, for instance, are notoriously hard to match once a section’s been lifted.
Tarmac driveway: £500-£1,500 for a proper compacted reinstatement, more if the council requires a specific specification because the drive crosses a public path.
Concrete: £300-£900, but needs curing time, which can add days to a job that otherwise takes an afternoon.
The Checkatrade guide flags exactly this pattern – reinstatement is consistently the most underestimated part of any dig-and-replace job, because homeowners naturally focus on the pipe, not the surface.
A real job: Sidcup, three-bedroom semi, October 2025
Collapsed 100mm clay drain, 7 metres, running under a block-paved driveway at roughly 90cm depth. CCTV survey: £140. Excavation and access: £680. New PVC pipe, bedding, and backfill: £520. Muck-away (two loads): £360. Block paving reinstatement, matched to existing: £890. Total: £2,590 plus VAT.
Without the driveway, that job would have landed under £1,600. The pipe itself was the smallest single cost on the invoice.
Is It Cheaper to Excavate Drain UK Runs in Summer?
Slightly, and mostly for reasons that have nothing to do with the weather. Ground that’s waterlogged after weeks of rain takes longer to excavate safely and often needs extra pumping. Firms are also busier in spring after winter freeze-thaw damage shows up, so summer and early autumn tend to have marginally better availability and, occasionally, marginally better pricing.
Don’t wait for a “good time” if you’ve already got a collapsed pipe, though. A partial collapse that’s ignored for six months usually gets worse, and worse means a longer trench, more muck-away, and a bigger bill.
What If the Blockage Isn’t Actually a Collapse?
Worth checking before you commit to excavation. Plenty of jobs that look like collapses on the surface – slow drainage, gurgling, smells – turn out to be root ingress or a straightforward blockage that a jetting visit clears for a fraction of the price. Our drain unblocking cost guide covers what that looks like, and it’s always worth ruling out before you book a dig.
Excavate Drain UK Jobs: Regional Price Differences
London and the South East run 20-35% above the national average for the labour portion of the job, largely down to wage rates and the cost of licensed muck-away disposal within the M25. A dig that costs £1,800 in Nottingham can be £2,400-£2,600 in Croydon for an identical spec.
Rural jobs sometimes cost more too, oddly enough, because of travel time and the need to bring in a digger rather than hire one locally. It’s not a straight north-south divide – it’s about access, disposal sites, and how far the crew has to travel.
Before You Book: A Quick Checklist
- Get a CCTV survey first – it turns a guess into a fixed price.
- Ask for a line-item quote covering excavation, pipe, muck-away, and reinstatement separately.
- Confirm what surface reinstatement actually means – matched materials or a generic patch.
- Check if the drain is shared or near a public sewer – that changes the licensing and the timeline.
- Compare at least three quotes, and query any single-figure quote with no breakdown.
- Ask what happens if ground conditions change mid-dig, and get that answer in writing.
If you’re in Lee, Battersea, Bewbush, or the West End and you’ve had a CCTV survey come back showing a collapsed or displaced pipe, our engineers at Lee SE12, Battersea, Bewbush and West End W1H quote the real number upfront – excavation, muck-away and reinstatement included, not added on afterwards.
Get a quote through our contact page before you commit to anyone else’s ballpark figure. A proper drain excavation cost breakdown should never need a follow-up call to explain why it doubled.
Published July 2026. Last updated: July 2026. Written by a time-served drainage engineer at Drain Cleaning Solution, based on current UK job pricing and industry cost data.
Understanding drain excavation cost early helps you budget and avoid bigger repair bills later.
